Type W 8AWG 5C UL Approved Portable Power Cable
- If In Stock Ready to Ship
- Fully Certified
- Fast & Secure Shipping
- High Quality Construction
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|

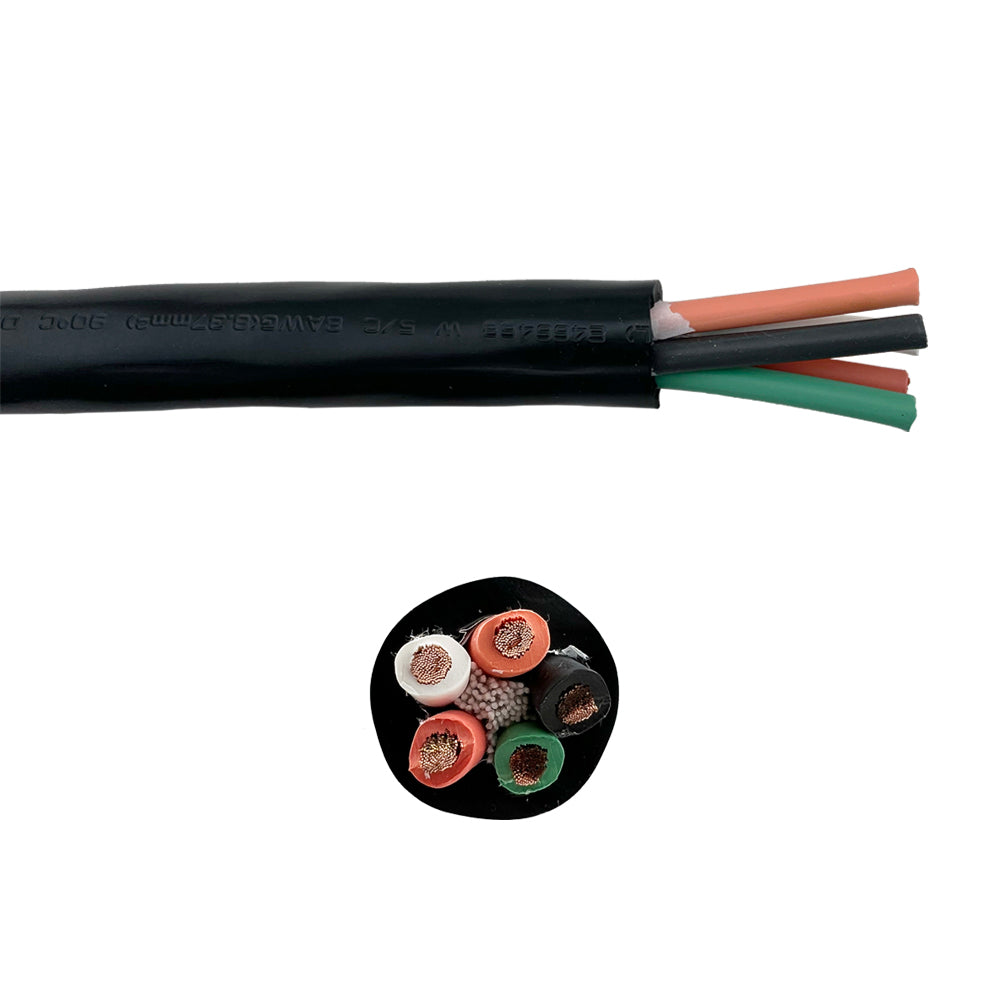

Type W 8/5 Portable Power Cable; UL approved 8 AWG 5 conductor bulk wire for use in USA in applications requiring 52A 2000V or less. This 8 gauge 5 conductor Type W style portable cordage is sold cut to order in 1 foot increments. Sold by the foot and subject to a $50 spool fee based on volume. Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Country Category | USA |
| Voltage | 2000V |
| Amperage | 52 |
| Cord Length | Bulk |
| Wire Jacket Standard | Type W UL 1650 portable power cable |
| Gauge | 8AWG |
| Conductors | 5 |
| Copper Wire Stranding | 262 strands of 0.254mm² wire |
| Conductors Material | Annealed Bare Copper |
| Conductor Insulation Material | XLPE (cross linked polyethylene) |
| Jacket Material | NBR/PVC |
| Jacket Temp. Rating |
90°C |
| Wire Outer Diameter | 26.7mm |
| Conductor Color Code | Black White Orange Green Red |
| 36 inch Spool Maximum Quantity | 1,475 feet |
| 24 inch Spool Maximum Quantity | 295 feet |
| Certifications | UL file# E466468 |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
| Country of Origin | China |
| Attribute | Specification |
|---|---|
| Country Category | USA |
| Voltage | 2000V |
| Amperage | 52 |
| Cord Length | Bulk |
| Wire Jacket Standard | Type W UL 1650 portable power cable |
| Gauge | 8AWG |
| Conductors | 5 |
| Copper Wire Stranding | 262 strands of 0.254mm² wire |
| Conductors Material | Annealed Bare Copper |
| Conductor Insulation Material | XLPE (cross linked polyethylene) |
| Jacket Material | NBR/PVC |
| Jacket Temp. Rating |
90°C |
| Wire Outer Diameter | 26.7mm |
| Conductor Color Code | Black White Orange Green Red |
| 36 inch Spool Maximum Quantity | 1,475 feet |
| 24 inch Spool Maximum Quantity | 295 feet |
| Certifications | UL file# E466468 |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
| Country of Origin | China |
