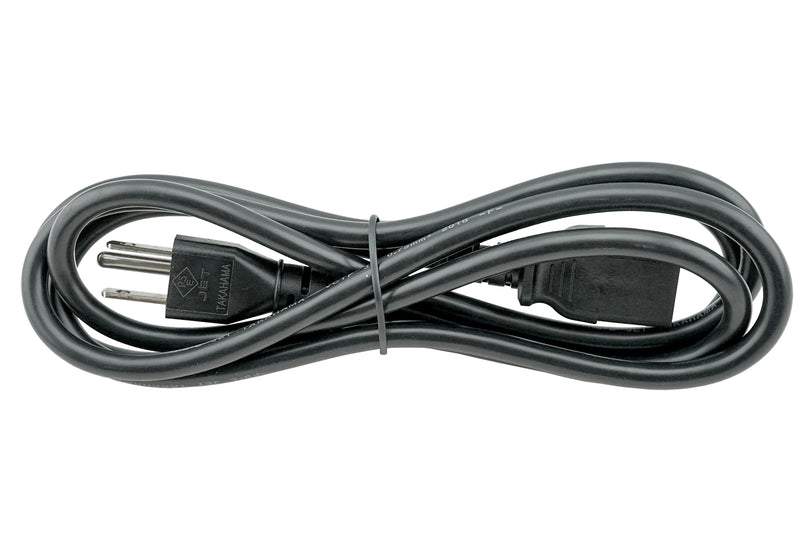

USA NEMA 5-15P to C5 Round Wire Power Cord - 6 ft
We have 3275 in stock.
- If In Stock Ready to Ship
- Availibility in a Number of Different Lengths
- High Quality Construction
- Meets All Certification Needs
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|
5-15 to C5 Power Cord: USA NEMA 5-15P standard 3 pin plug to IEC C5 with 18/3 SVT black wire, 6 feet with UL and CSA approvals. Also available in lower profile flat wire here; P-06BM |
For OEM and Wholesale pricing, please feel free to Live Chat with us, email us at sales@signalandpower.com, or call us at 408-871-7928 for assistance. Documentation links below.
| Attribute | Specification |
|---|---|
| Male Plug | USA NEMA 5-15P 3 prong 7A |
| Female Receptacle | IEC60320 C5 3 prong 7A |
| Wire Jacket Standard | SVT |
| Gauge | 18AWG |
| Conductors | 3 wire |
| Copper Wire Stranding | 41 strands of 0.16mm² |
| Jacket Material | PVC |
| Temperature Rating | Up to 105°C |
| Wire Outer Diameter | 6.3mm |
| Conductor Color Code | Black, White and Green / NACC (North American color code) |
| Voltage | Up to 125 Volts AC |
| Amperage | Up to 7 Amps |
| Color | Black |
| Number Per Carton | 100 |
| Carton Weight | 34 lbs (15.4kg) |
| Carton Dimensions | 15.75 X 11.8 X 9 inches (40 X 30 X 23cm) |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Certifications | UL/cUL Listed, CSA |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
| Country of Origin | China |
