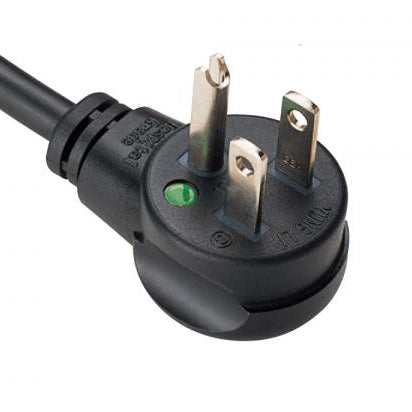

Hospital Grade Up Angle NEMA 5-15P Cord Plug (YP-18L)
- Premium Construction
- Made to Order
- Fully Tested, Approved and Certified
- High Temperature Rating
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|
Hospital Grade: Up Angle NEMA 5-15P Cord Plug (YP-18L) - North America NEMA 5-15P USA hospital grade green dot up angle 3 prong power cord plug with cUL certification. Rated up to 15A 125V, 13A 125V or 10A 125V. Built to the NEMA 5-15P hospital grade standard. Certified hospital grade green dot cords with RoHS and REACH compliance. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | NEMA 5-15P up angle Hospital Grade Green Dot plug |
| Maximum Current rating | 15A |
| Maximum Voltage | 125V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 14 through 18AWG |
| Outer Mold Material | 35P PVC |
| Blade Material | Nickel Coated Brass |
| Flamability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | cUL file# E152635, CSA file# LR76393 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 18/3 | SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTW, SJTO, SJTOW, EVE, EVJE | 10/125 |
| 16/3 | SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTW, SJTO, SJTOW, EVE, EVJE | 13/125 |
| 14/3 | SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTW, SJTO, SJTOW, EVE, EVJE | 15/125 |
| Attribute | Specification |
|---|---|
| Connector Standard | NEMA 5-15P up angle Hospital Grade Green Dot plug |
| Maximum Current rating | 15A |
| Maximum Voltage | 125V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 14 through 18AWG |
| Outer Mold Material | 35P PVC |
| Blade Material | Nickel Coated Brass |
| Flamability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | cUL file# E152635, CSA file# LR76393 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 18/3 | SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTW, SJTO, SJTOW, EVE, EVJE | 10/125 |
| 16/3 | SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTW, SJTO, SJTOW, EVE, EVJE | 13/125 |
| 14/3 | SJT, SJTW, SJTO, SJTOW (All TPE material), SJT, SJTW, SJTO, SJTOW, EVE, EVJE | 15/125 |
