Brazil 16A NBR14136 to C19 Power Cord - 10 ft
We have 177 in stock.
- If In Stock, Ready to Ship
- Available in a number of different lengths
- High Quality Construction
- Meets All Certification Needs
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|

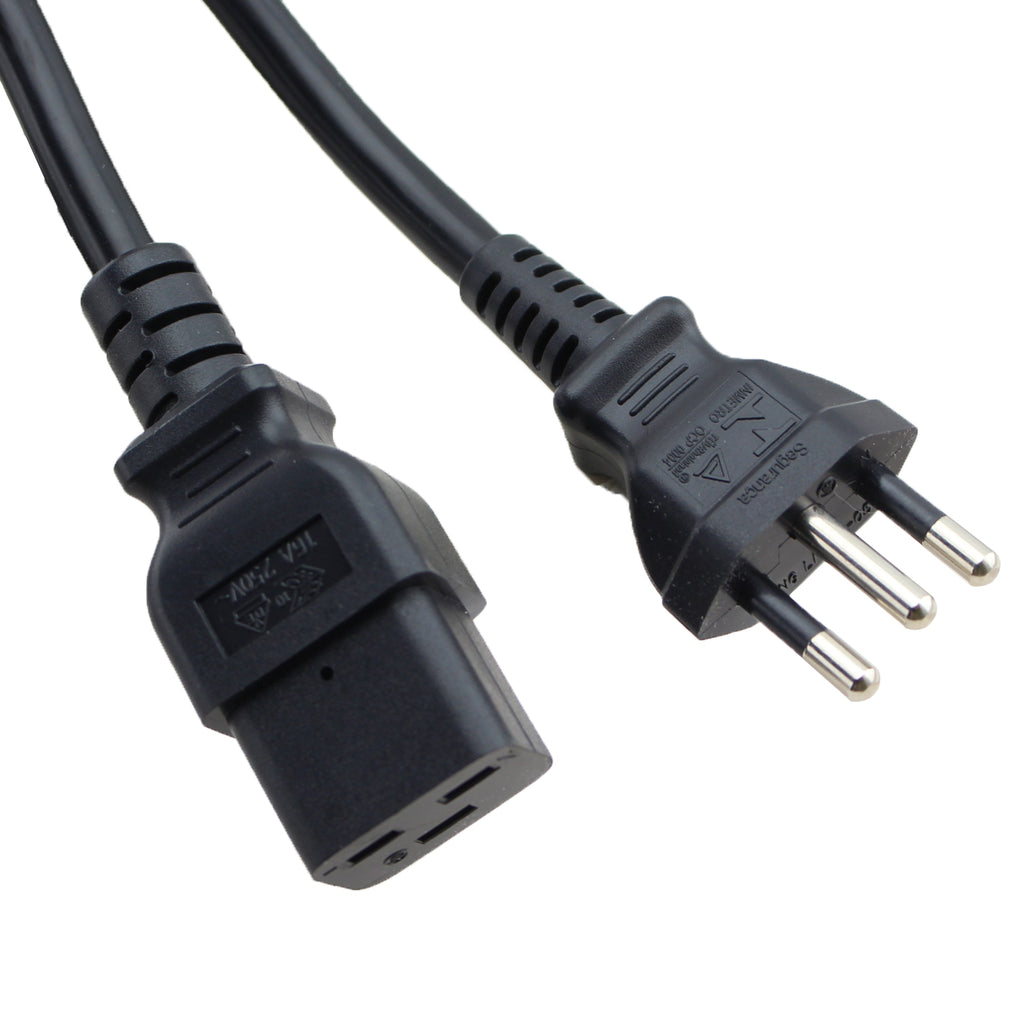

Brazil industrial to C19 power cord: Brazil NBR14136 (aka IEC 60906-1) industrial 3P plug to IEC C19 with H05VV-F black wire, 10 feet. Rated up to 16A 250V and Brazilian INMETRO certified. Can be used to power Bitcoin/Cryptocurrency mining devices. Please note: Brazil electrical standards define plugs rated to the normal use 10A 250V usage or the higher powered and physically larger 16A 250V. Both plugs look similar but this cord has the larger plug and requires a larger 16A 250V outlet. |
For OEM and Wholesale pricing, please feel free to Live Chat with us, email us at sales@signalandpower.com, or call us at 408-871-7928 for assistance. Documentation links below.
| Attribute | Specification |
|---|---|

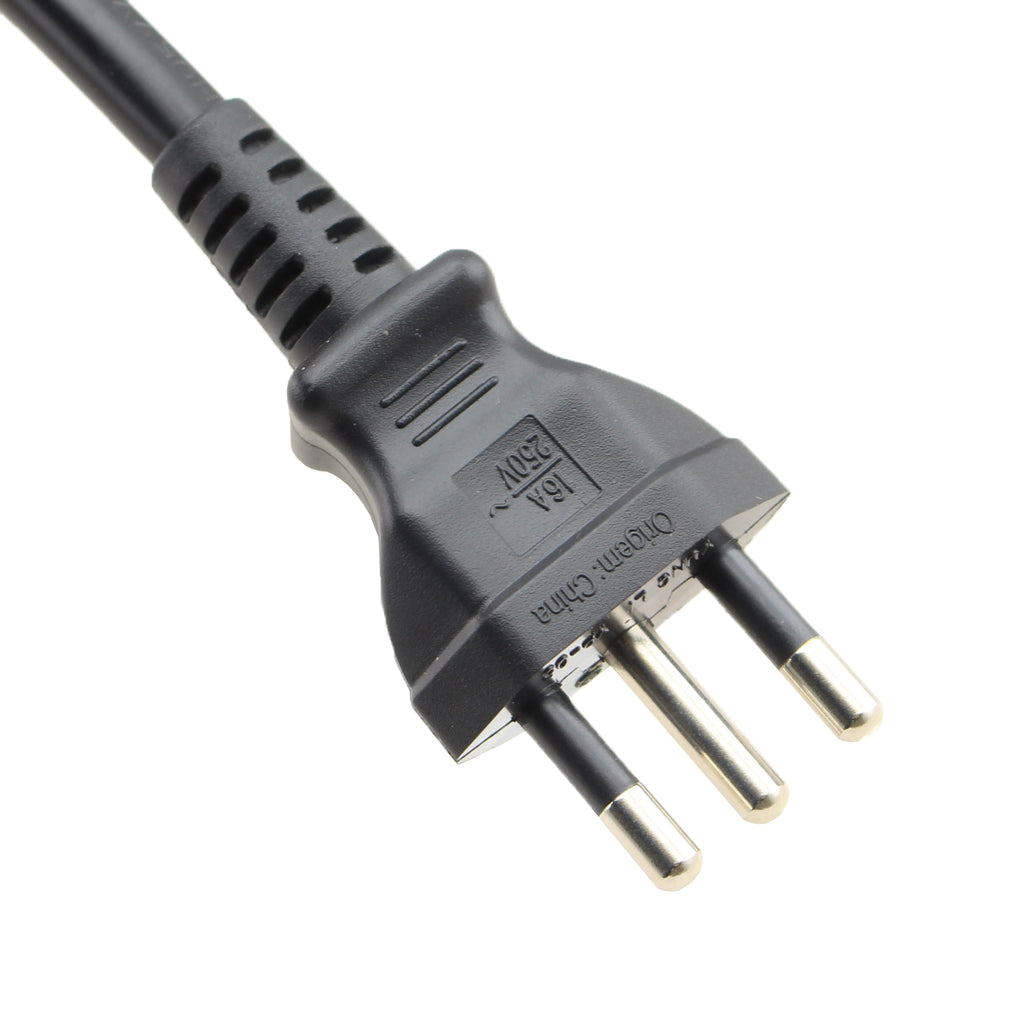

| Male Plug | Brazil NBR14136 3 prong 16A industrial use, Note: larger prongs than normal use plug |

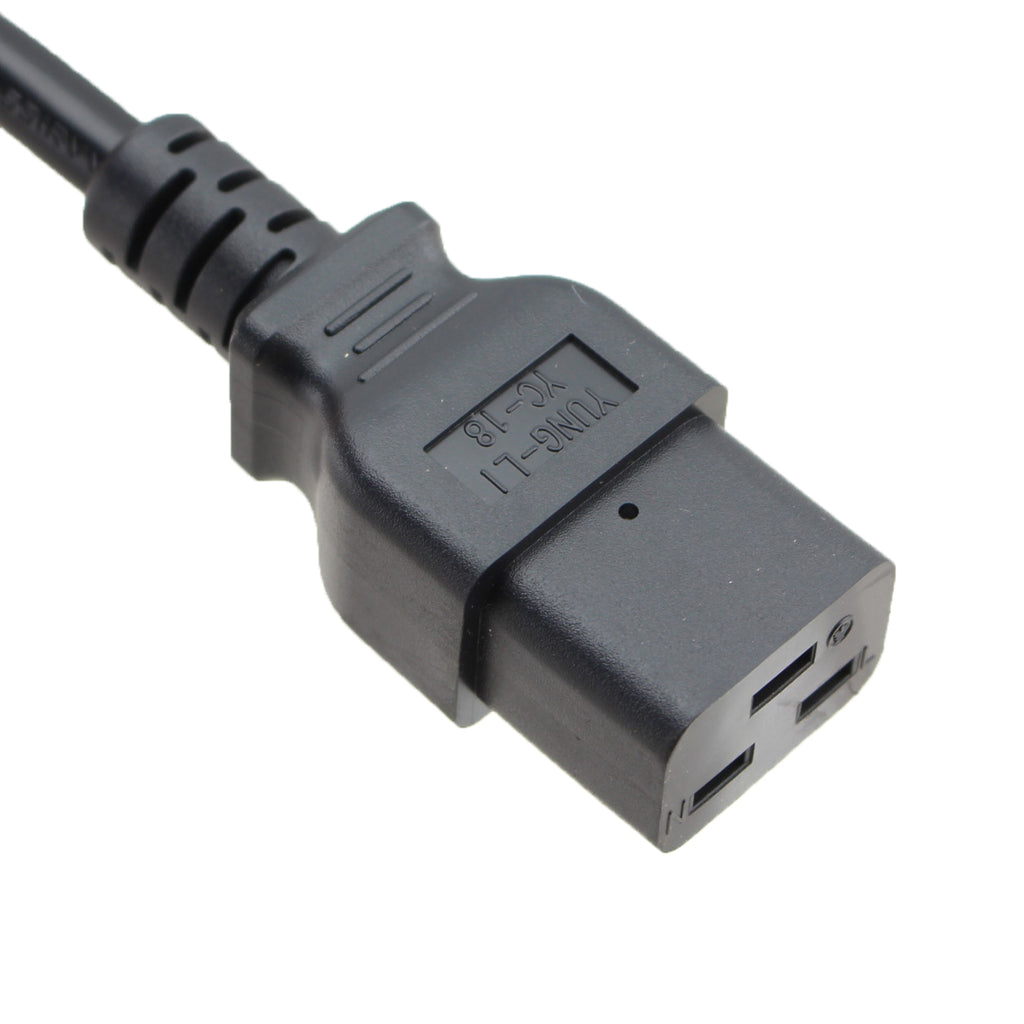

| Female Receptacle | IEC60320 C19 3 prong 16A |
| Wire Jacket Standard | H05VV-F |
| Gauge | 1.5mm² |
| Conductors | 3 wire |
| Copper Wire Stranding | 48 strands of 0.202mm² |
| Jacket Material | PVC |
| Temperature Rating | Up to 70°C |
| Wire Outer Diameter | 8.5mm |
| Conductor Color Code | Blue, Brown and Green with Yellow stripe / ICC (International color code) |
| Voltage | Up to 250 Volts AC |
| Amperage | Up to 16 Amps |
| Color | Black |
| Number Per Carton | 30 |
| Carton Weight | 29 lbs (13.1kg) |
| Carton Dimensions | 15.75 X 11.8 X 9 inches (40 X 30 X 23cm) |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Certifications | Brazil INMETRO |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
| Country of Origin | China |
| Attribute | Specification |
|---|---|
| Male Plug | Brazil NBR14136 3 prong 16A industrial use, Note: larger prongs than normal use plug |
| Female Receptacle | IEC60320 C19 3 prong 16A |
| Wire Jacket Standard | H05VV-F |
| Gauge | 1.5mm² |
| Conductors | 3 wire |
| Copper Wire Stranding | 48 strands of 0.202mm² |
| Jacket Material | PVC |
| Temperature Rating | Up to 70°C |
| Wire Outer Diameter | 8.5mm |
| Conductor Color Code | Blue, Brown and Green with Yellow stripe / ICC (International color code) |
| Voltage | Up to 250 Volts AC |
| Amperage | Up to 16 Amps |
| Color | Black |
| Number Per Carton | 30 |
| Carton Weight | 29 lbs (13.1kg) |
| Carton Dimensions | 15.75 X 11.8 X 9 inches (40 X 30 X 23cm) |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Certifications | Brazil INMETRO |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
| Country of Origin | China |
