YC-14L (Right Angle IEC C5) USA
- Fully Certified by Territory
- Made to Order
- Expert Advice Available on Product
- Fast & Secure Shipping
- Description
- Product Specification
- Shipping & Returns
- Customer Review
|

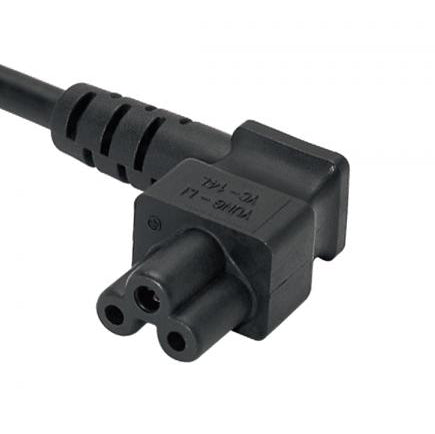

OEM Custom: YC-14L (Right Angle IEC C5) USA IEC C5 right angle 3 prong power cord receptacle with cUL approval. Built to the right angle IEC 60320-C5 standard for use in Canada, America and Mexico. Rated up to 10A 125V. Our right angle IEC C5 receptacles are fully molded with a low profile ergonomic design and RoHS and REACH compliant. For price, availability or consultation contact us at: Phone: 888-788-4884 Email: sales@signalandpower.com |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C5 right angle |
| Maximum Current rating | 10A |
| Maximum Voltage | 125V or 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 18AWG |
| Outer Mold Material | 35P PVC |
| Blade Material | Phosphorous Bronze |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | cUL file# E152635, CSA file# LR76398 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 18/3 | SVT, SJT, SPT-2 (All TPE material), SVT, SJT, SPT-2 | 10/125/250 or 2.5/250 or 7/125 |
| Attribute | Specification |
|---|---|
| Connector Standard | IEC 60320 C5 right angle |
| Maximum Current rating | 10A |
| Maximum Voltage | 125V or 250V |
| Number of Poles and Wires | 2 poles, 3 wires |
| Available Wire Thickness | 18AWG |
| Outer Mold Material | 35P PVC |
| Blade Material | Phosphorous Bronze |
| Flammability Rating | UL 94V-0 |
| Color | Black is standard but any color available |
| Temperature Rating | -40°C through +75°C |
| Approvals | cUL file# E152635, CSA file# LR76398 |
| Environmental Certifications | RoHS, REACH |
| Testing | Hi-Pot (Dielectric Withstanding Voltage), Polarity (Pinout) and Continuity |
Available Wire Styles
| Gauge/ # Conductors | Cord Type | Electrical Rating (Amps/Volts) |
|---|---|---|
| 18/3 | SVT, SJT, SPT-2 (All TPE material), SVT, SJT, SPT-2 | 10/125/250 or 2.5/250 or 7/125 |
